Quantum MAX FaroArm

Quantum MAX FaroArm

Global CAD Technology proudly serves as the authorized distributor for the FARO Quantum MAX FaroArm, the most advanced FaroArm ever manufactured by FARO. It boasts superior accuracy and precision essential for executing high-precision measurement and inspection tasks.

The Quantum MAX FaroArm proves to be the ideal tool across various industries, including automotive, aerospace, and manufacturing. Its design prioritizes superior accuracy and precision, catering to a diverse range of 3D measurement, inspection, and reverse engineering applications.

Equipped with a powerful laser line probe capable of scanning at ultra-high speeds, the Quantum MAX efficiently captures highly accurate 3D data. The arm features a new ergonomic design for enhanced usability and incorporates touch-sensitive controls for easy operation.

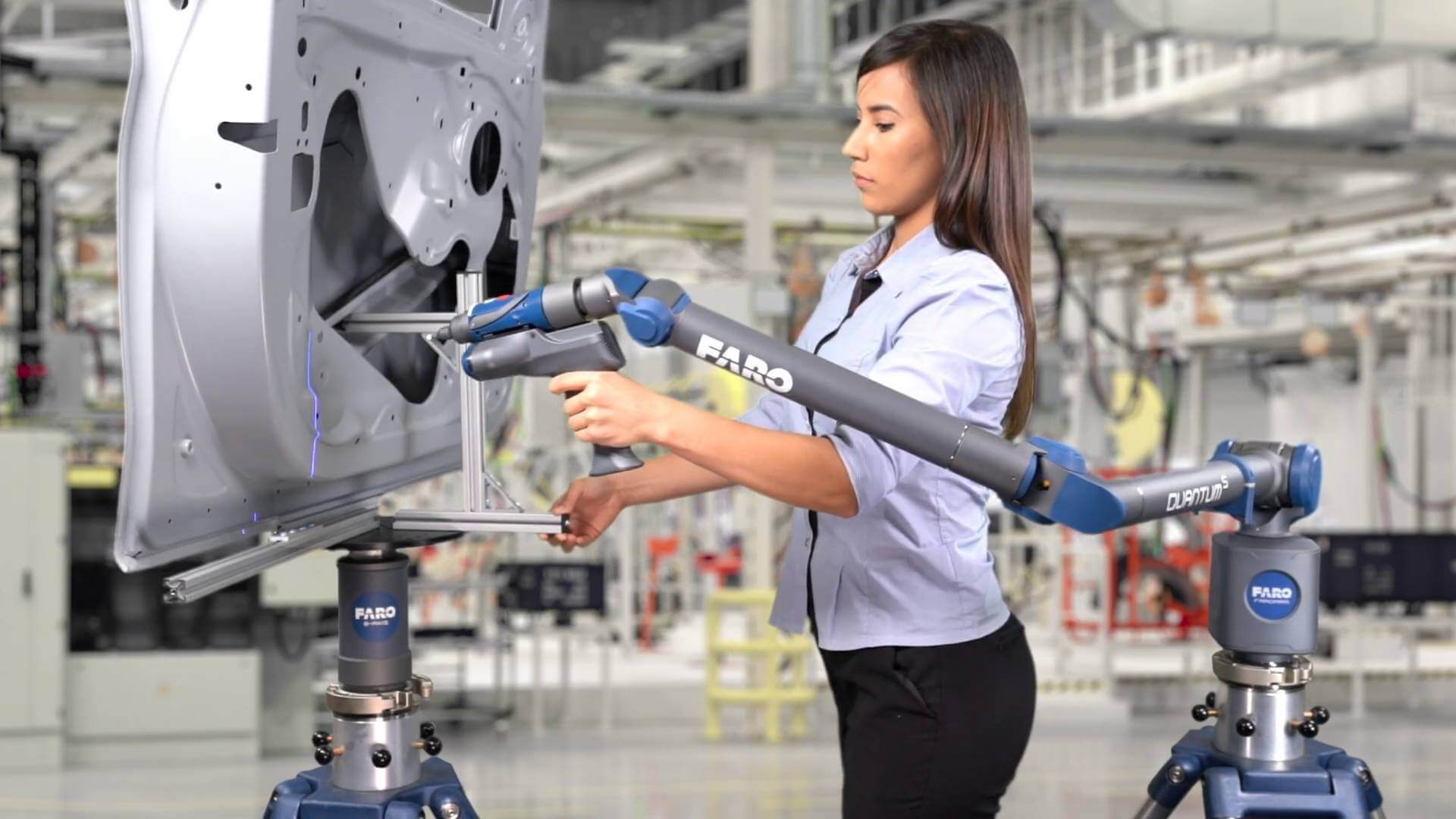

Quantum Max FaroArm

Further enhancing its capabilities, the Quantum MAX is outfitted with the latest software, facilitating user-friendly operation. The software includes tools for reverse engineering, alignment, and inspection, along with robust CAD/CAM tools that simplify the creation of 3D models and virtual prototypes.

Key Features

Multiple Working Volumes

Exclusive FARO Quantum Max 8-axis Integration

Powerful Software Solutions

Two Different Mounting Options

Compliance

Extended Battery Use Option

Internal Counterbalancing

Universal Quick Mount

Ergonomic Design

High-speed Wireless Operation

Temperature and Overload Sensors

Rugged Design

Product Specification

FaroArm Accuracy - Contact Measurement* (7 Axis)
Specification-Quantum Max ScanArm
Specification-Quantum Max ScanArm
Specification-Quantum Max ScanArm
FaroArm Accuracy - Contact Measurement* (6 Axis)
Specification-Quantum Max ScanArm
Specification-Quantum Max ScanArm

  All values represent MPE (Maximum Permissible Error)
 * Contact Measurement (FaroArm) : In Accordance with ISO 10360-12. With optional 8-Axis (FaroArm + 8-Axis) full system performance based on      ISO10360-12 Sphere Location Diameter Error (LDIA)
 ** Non-Contact Measurement (ScanArm and ScanArm + 8-Axis): Based on ISO 10360-8 Annex D; defined as LDIA (Sphere Location Diameter Error) – Diameter of the spherical zone containing the centers of a sphere measure from multiple orientations. Values are absolute
              1 SPAT – Single Point Articulation Test
             2 EUNI – Distance Error between two points comparing measured versus nominal values
             3 PSIZE – Sphere Probing Size Error comparing measured versus nominal values
            4 PFORM – Sphere Probing Form Error
            5 LDIA – Sphere Location Diameter Error (Diameter of the spherical zone containing the centers of a sphere measured from       multiple orientations)
